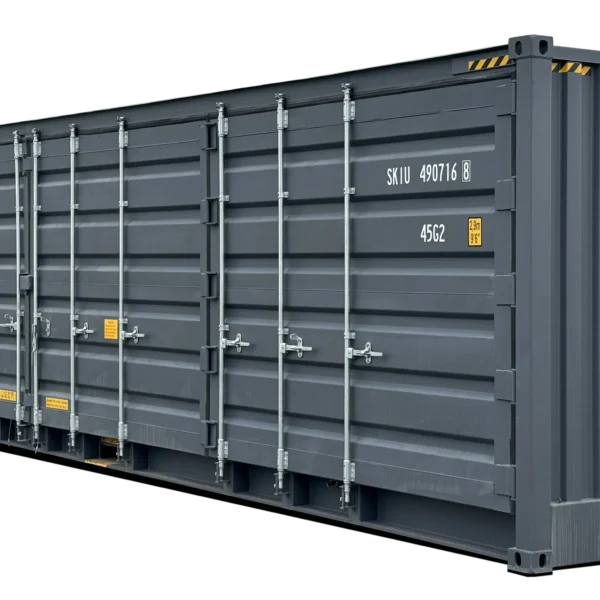

40ft New High Cube Open Side Hazmat

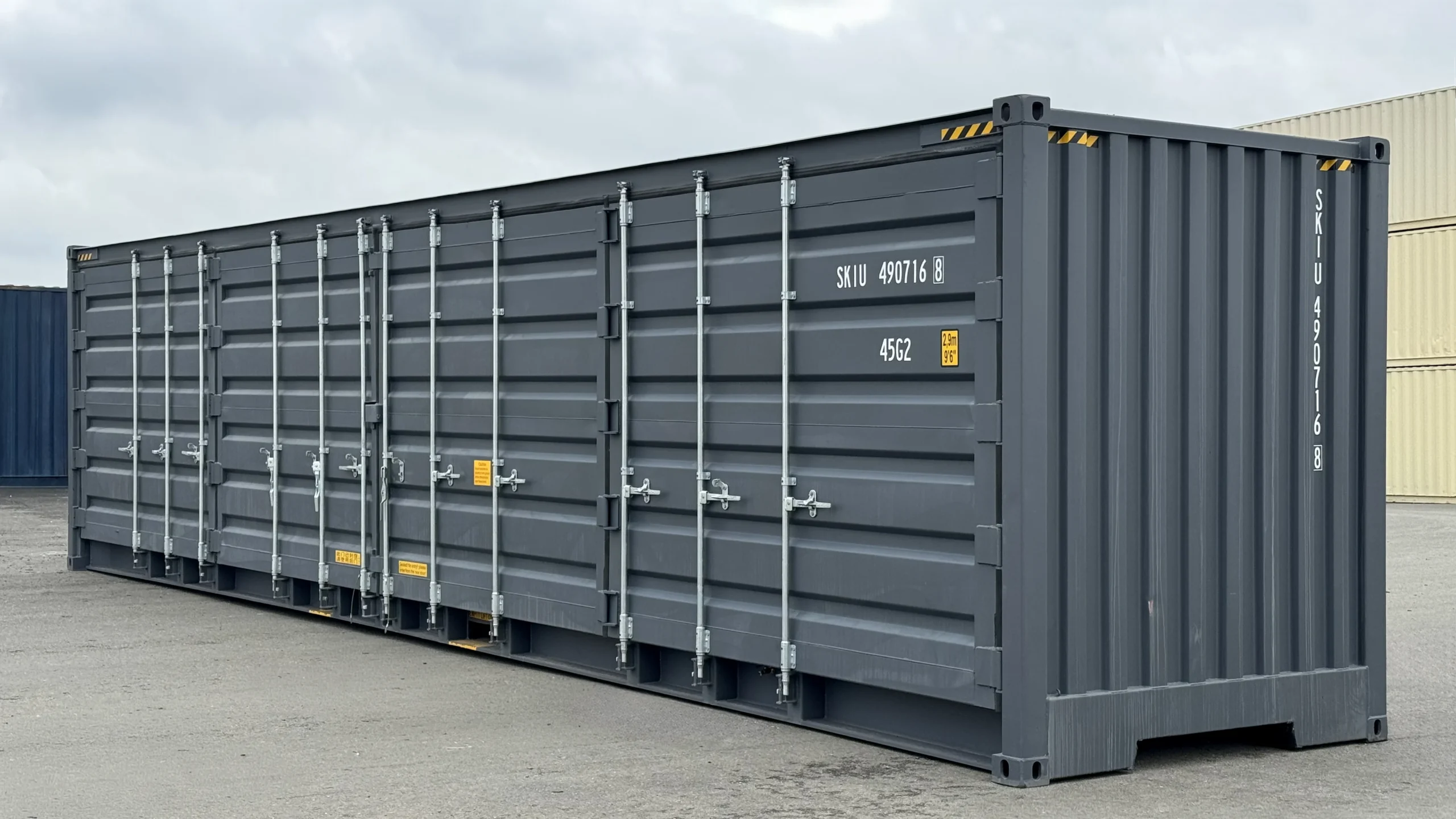

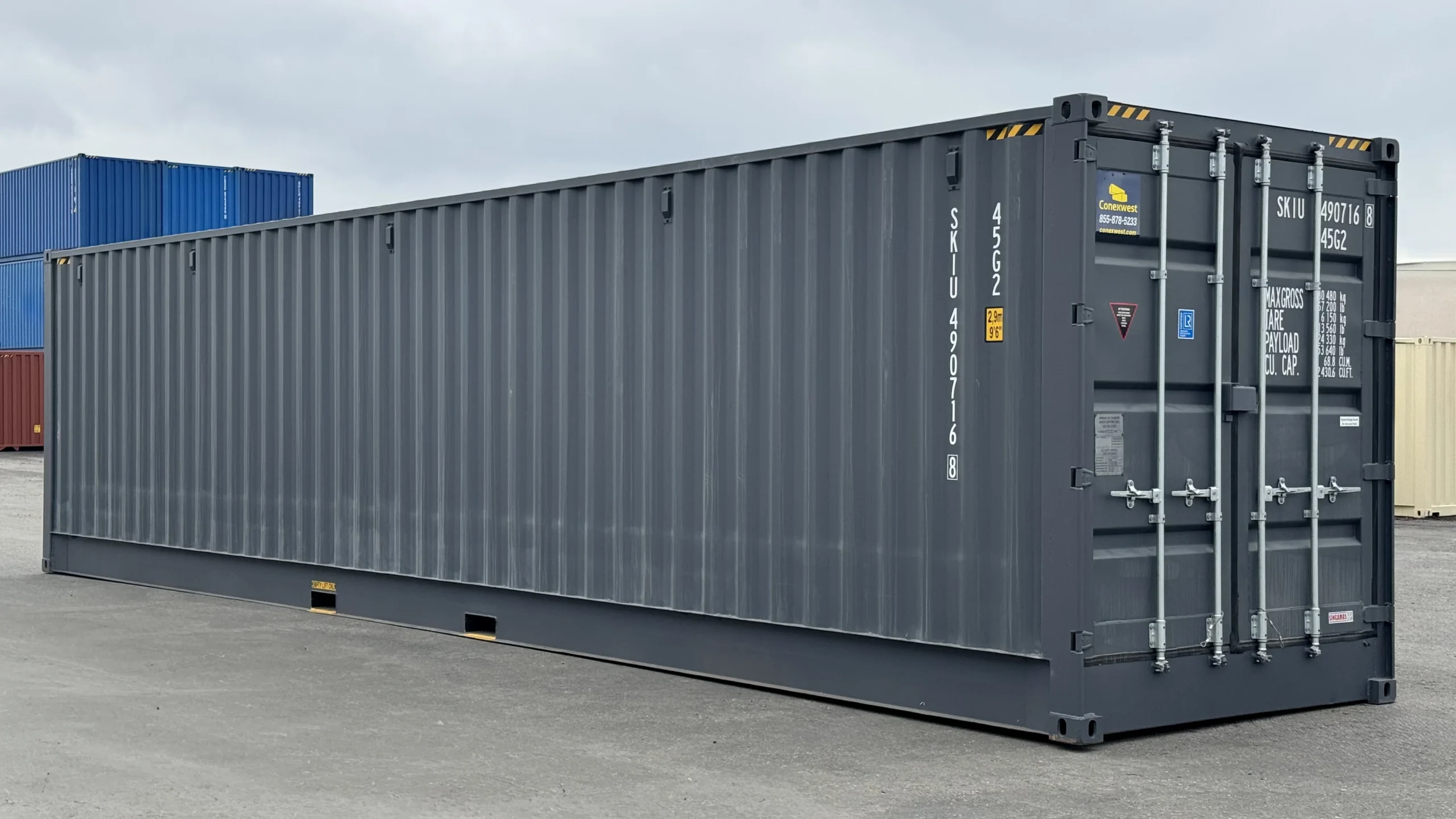

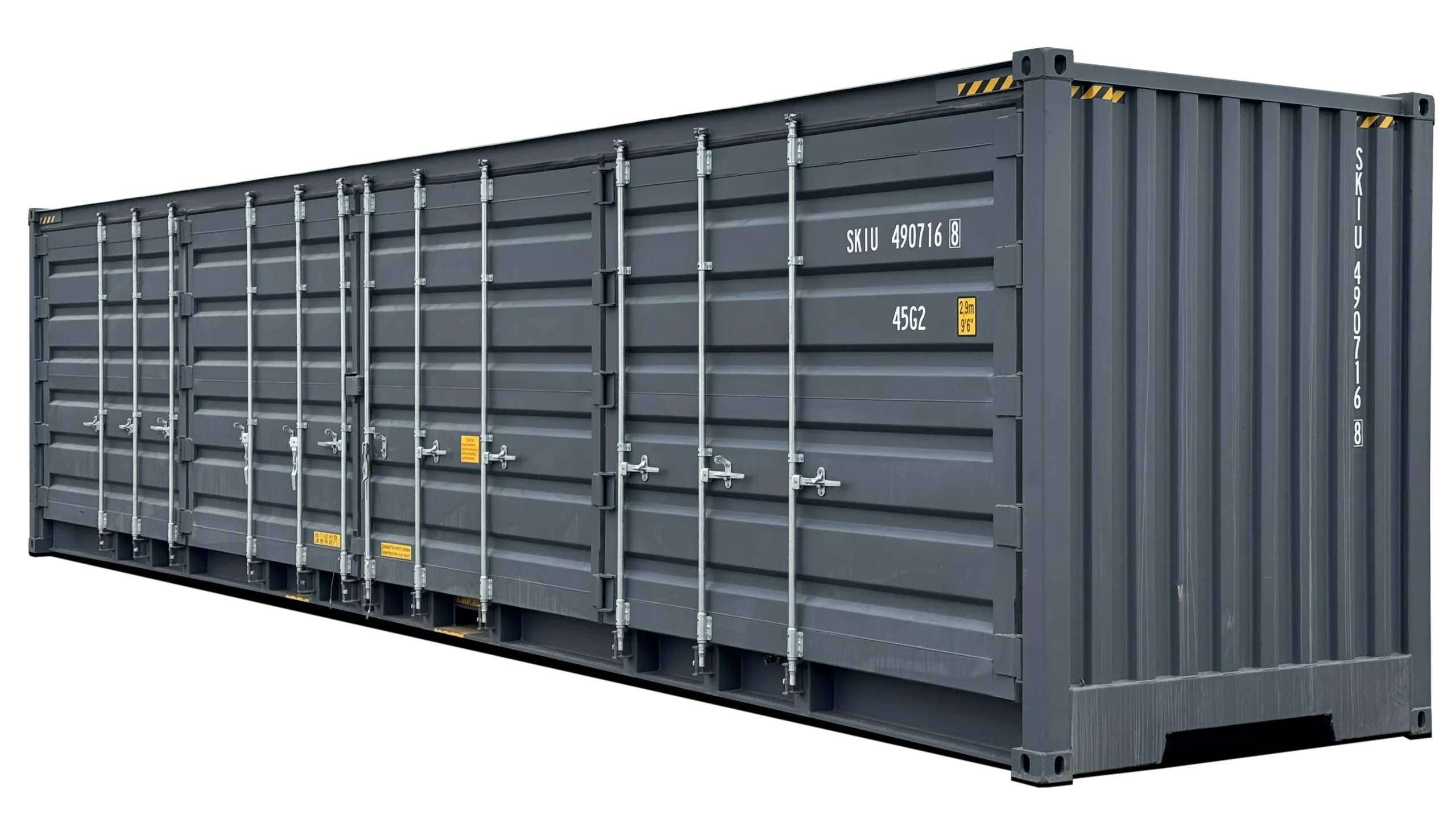

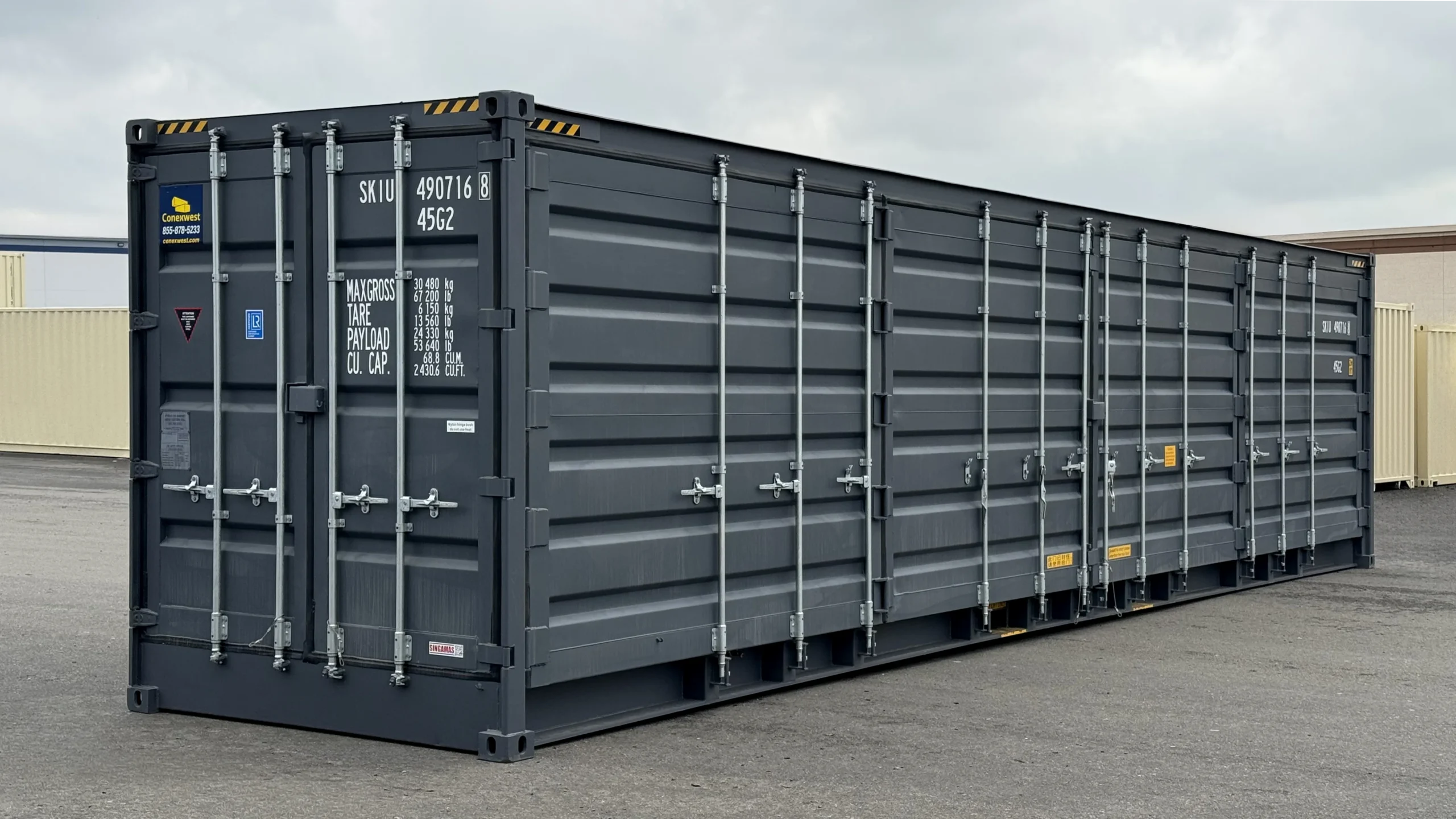

The 40ft New High Cube Open Side Hazmat Shipping Container is purpose-built for operations that require full side access, maximum vertical clearance, and certified storage of hazardous materials. Constructed from Corten steel to ISO standards, this one-trip unit features a full-length bi-fold side opening, standard double rear cargo doors, and an integrated hazmat-rated retention system with slatted flooring.

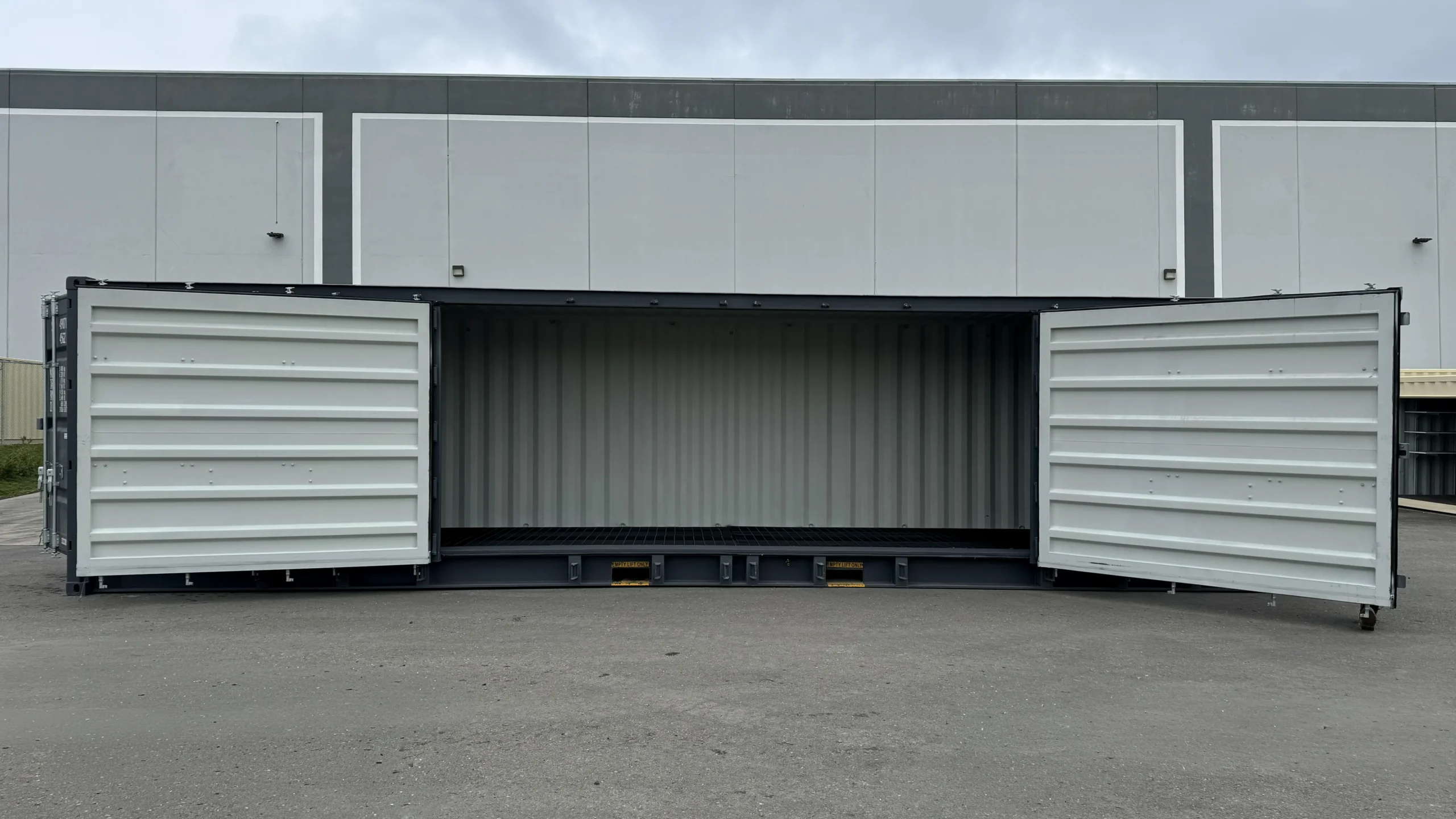

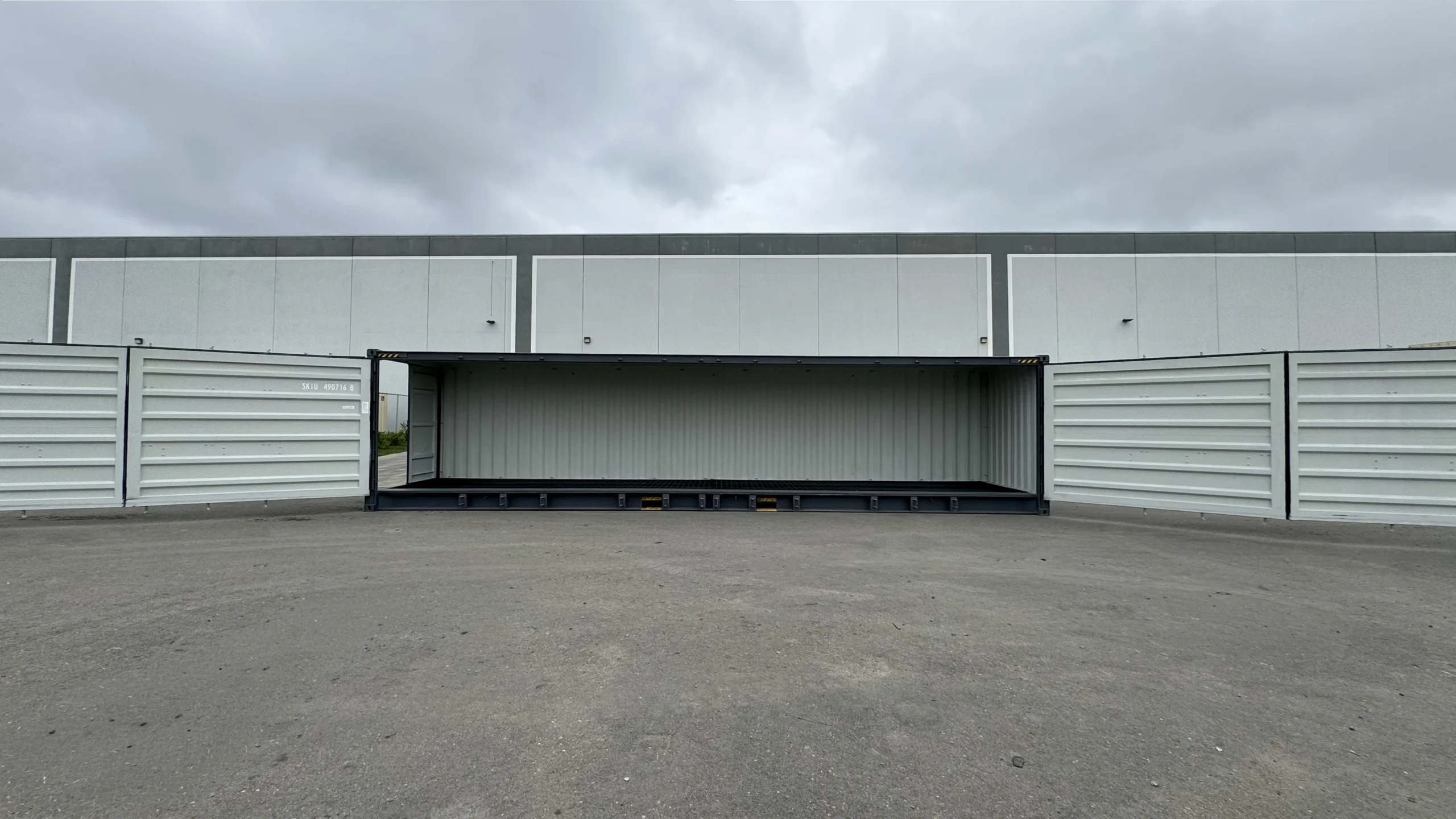

At 9’6″ tall, the high cube design provides approximately 10% more internal volume than standard-height containers — ideal for tall equipment, oversized drums, and bulk hazardous goods. The full side access allows forklift loading along the entire length of the unit.

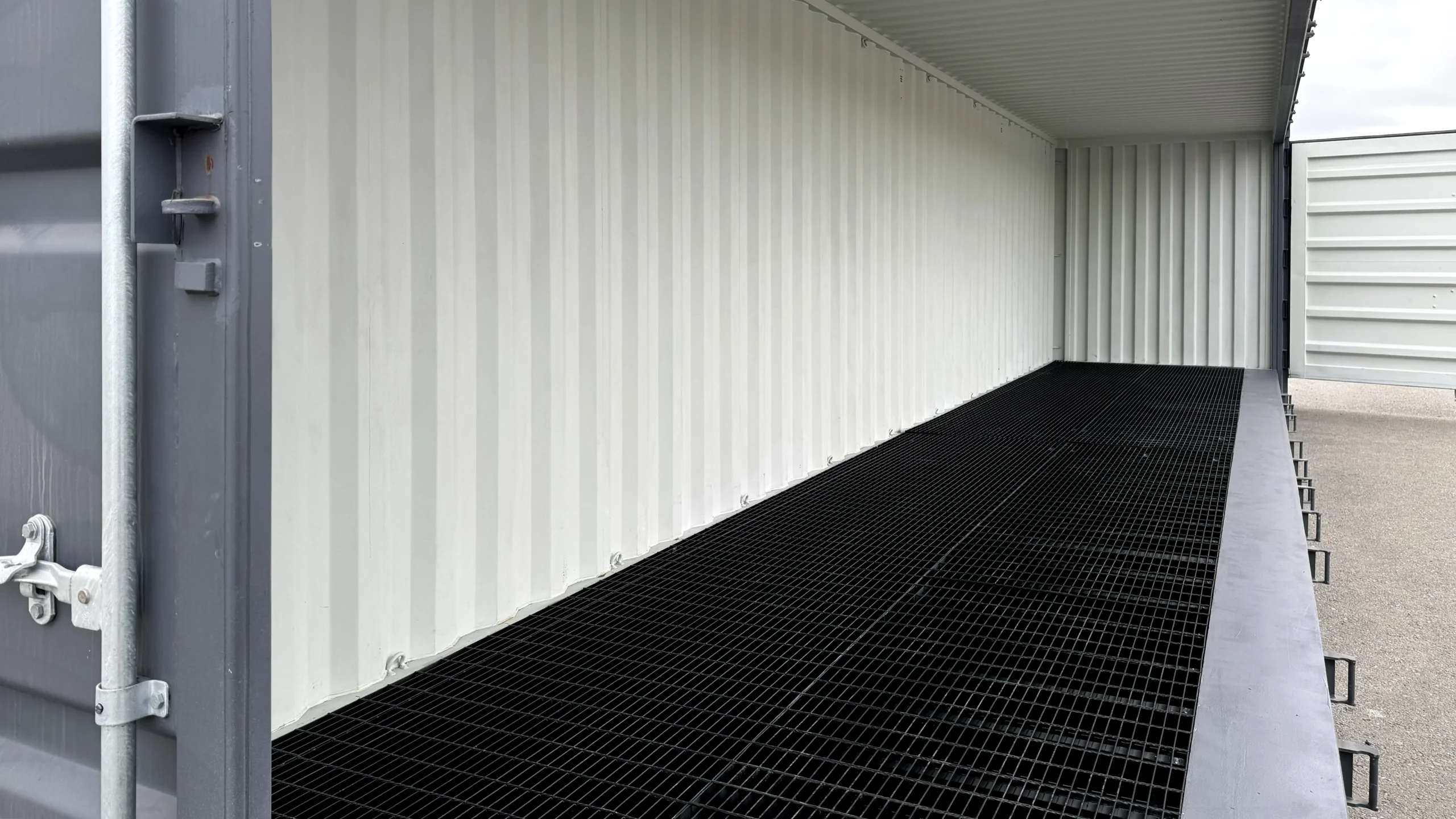

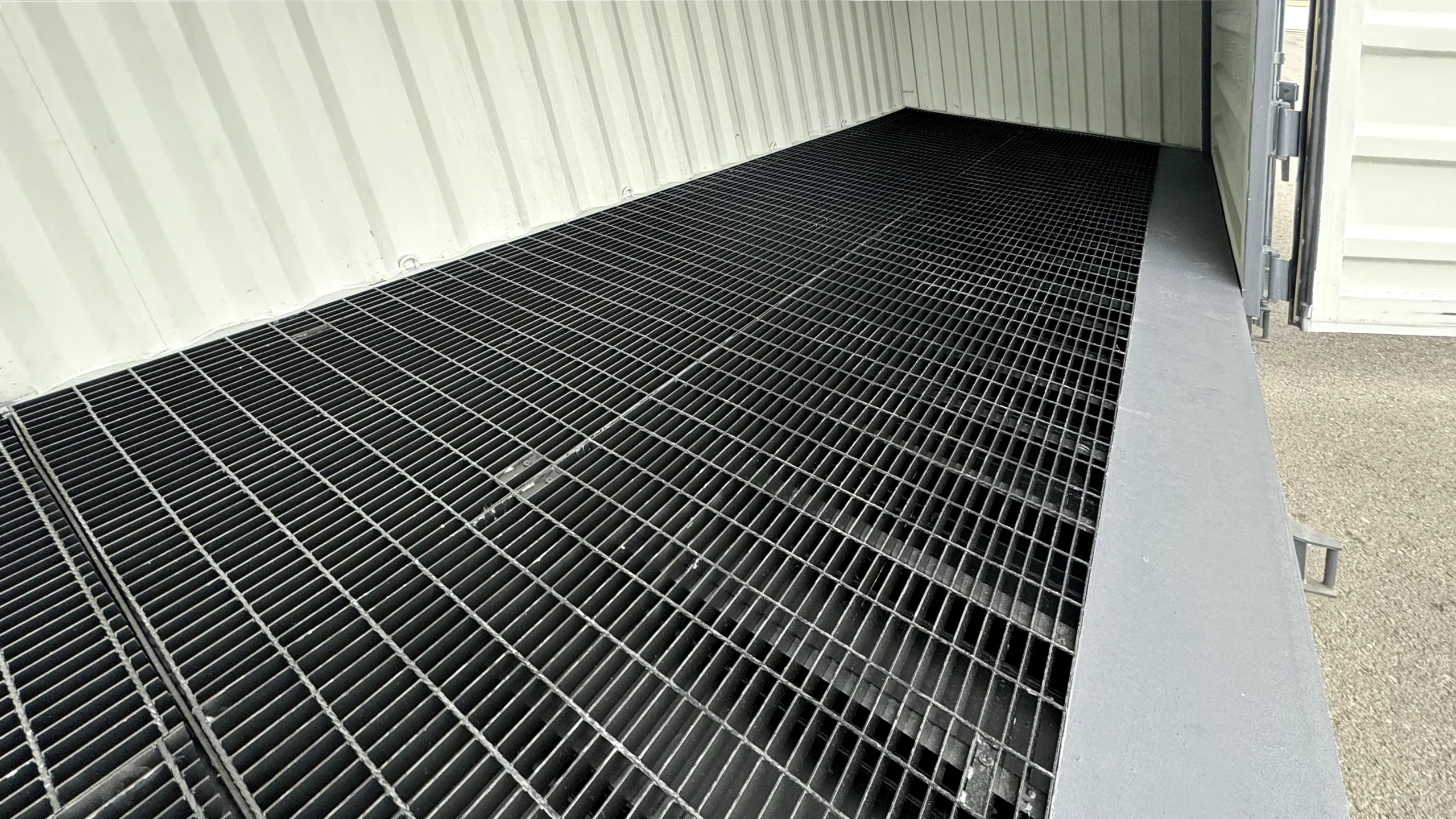

Each container is equipped with a built-in retention tank and chemical-resistant slatted floor designed to contain spills and meet hazardous materials storage regulations. Marine-grade plywood subflooring over steel cross-members ensures long-term structural durability.40ft Open Side Hazmat

Common uses include chemical storage, petroleum product containment, industrial waste management, construction site hazmat compliance, pharmaceutical logistics, and environmental remediation operations.

Exterior Length	40 ft 0 in. (12.192 m)
Exterior Width	8 ft 0 in. (2.438 m)
Exterior Height	9 ft 6 in. (2.896 m)
Interior Length	39 ft 4 in. (11.985 m)
Interior Width	7 ft 8 1/2 in. (2.352 m)
Interior Height	8 ft 10 in. (2.698 m)
Tare Weight	8,820 lbs (4,000 kg)
Payload Capacity	58,863 lbs (26,700 kg)
Gross Weight	67,200 lbs (30,480 kg)
Side Door Opening Width	39 ft 2 in. (11.940 m)
Side Door Opening Height	8 ft 5 1/2 in. (2.585 m)
Rear Door Width	7 ft 8 1/8 in. (2.340 m)
Rear Door Height	8 ft 5 3/4 in. (2.585 m)
Cubic Capacity	2,694 cu ft (76.3 m³)
Construction	Corten steel (corrosion-resistant)
Flooring	Chemical-resistant slatted floor over retention tank; marine-grade plywood subfloor

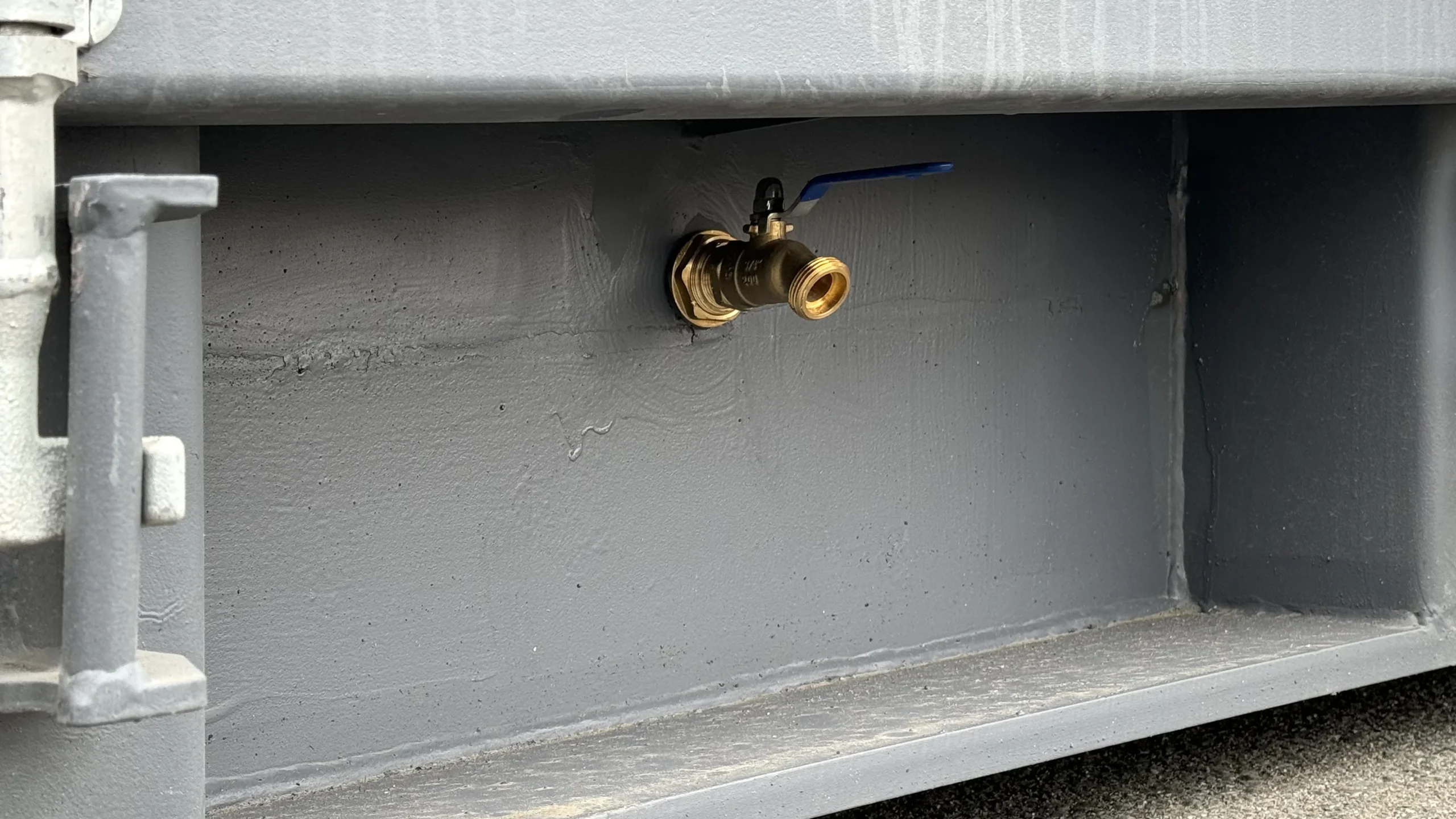

Retention Tank	Integrated spill containment system
Door Seals	High-grade rubber door seals
Floor Load Capacity	4,800 lbs (2,177 kg) per square meter
ISO Certified	Yes
CSC Plate	Yes
Hazmat Rated	Yes — certified for hazardous materials storage
Lockbox	Optional

We offer two types of trucks for container delivery:

Tilt-Bed Truck (recommended if no unloading equipment is available):
The truck will back into position, tilt the bed, and slide the container off onto the ground.
Requirements: 125 ft of straight clearance, 12 ft width, and 16 ft vertical clearance.

Flatbed Truck (if you have a forklift or crane on-site):
A forklift (minimum 15,000 lb capacity) or crane is required to unload the container.
Requirements: 125 ft of straight clearance, 12 ft width, and 14 ft vertical clearance.

Site Preparation
Before scheduling delivery, please ensure:

• Clear, unobstructed access for the delivery truck
• No overhead obstacles such as trees, utility lines, or structures
• Dry, solid ground conditions (notify us if the ground is soft, wet, or muddy)

Containers are placed directly onto flat, level surfaces. No foundation is required for ground storage.

Delivery Timing
Delivery is typically completed within 1–3 business days after your container is ready for dispatch.
