Fast delivery within 2-10 Days

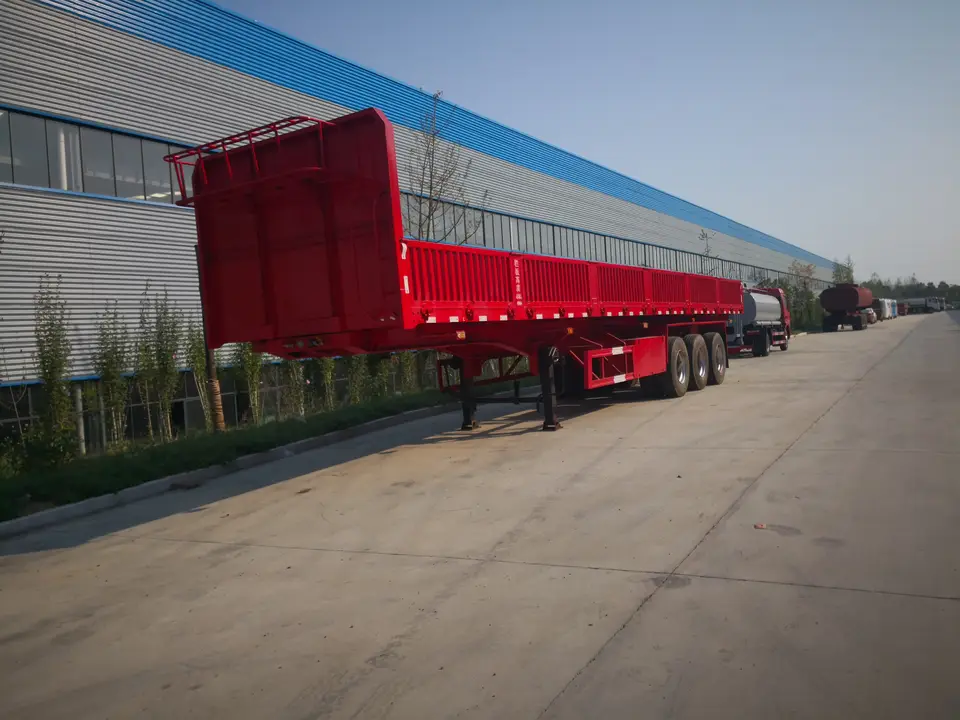

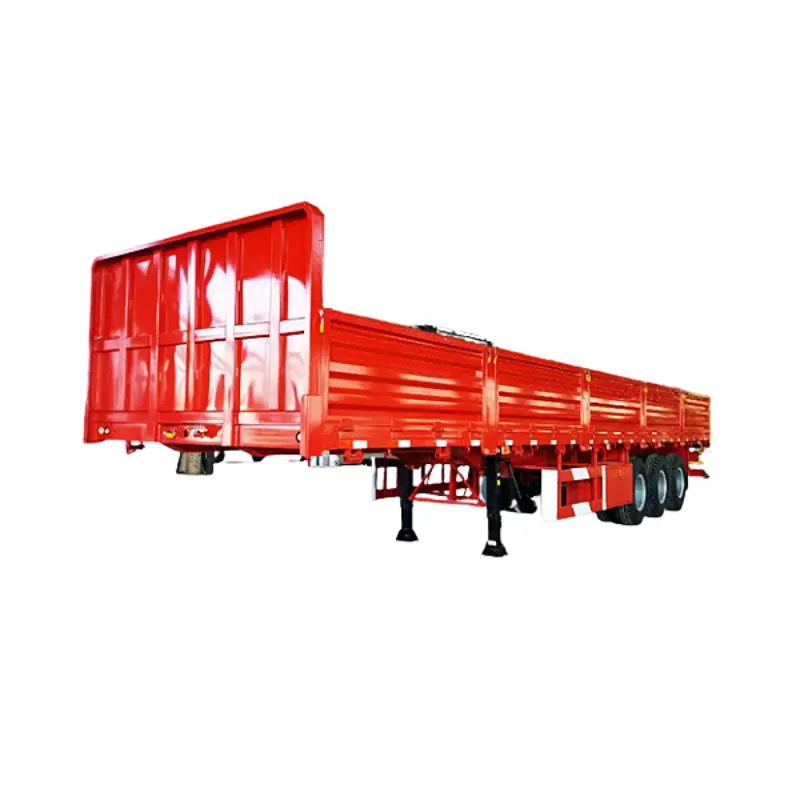

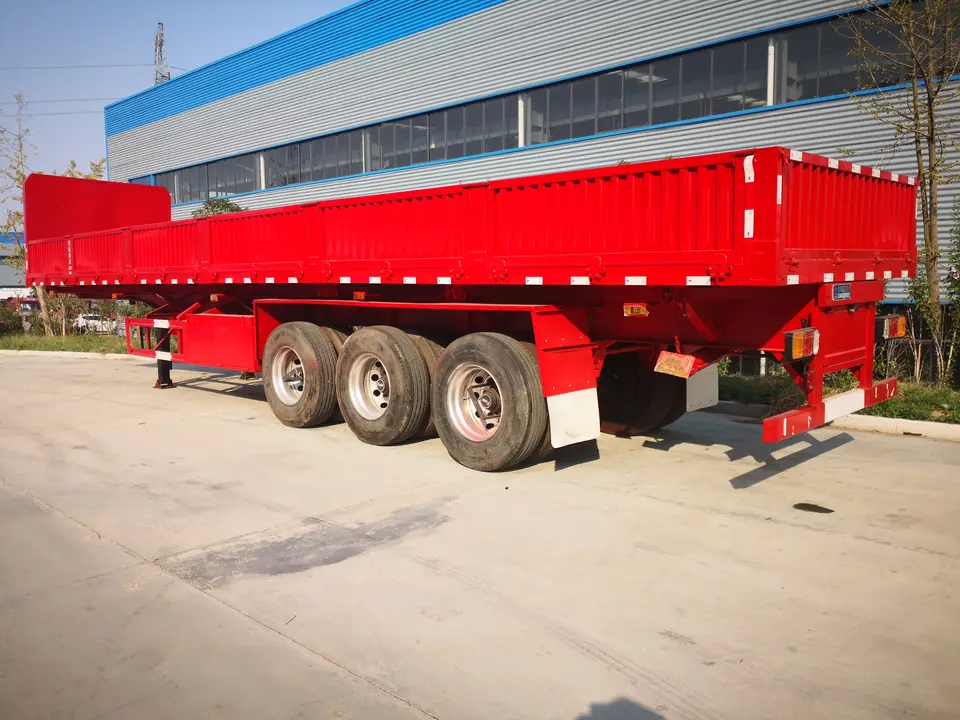

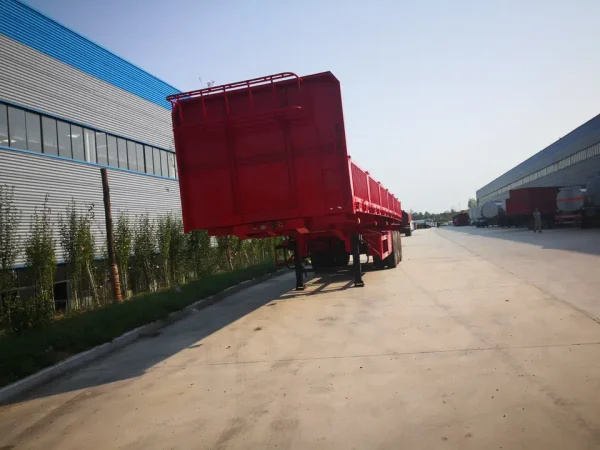

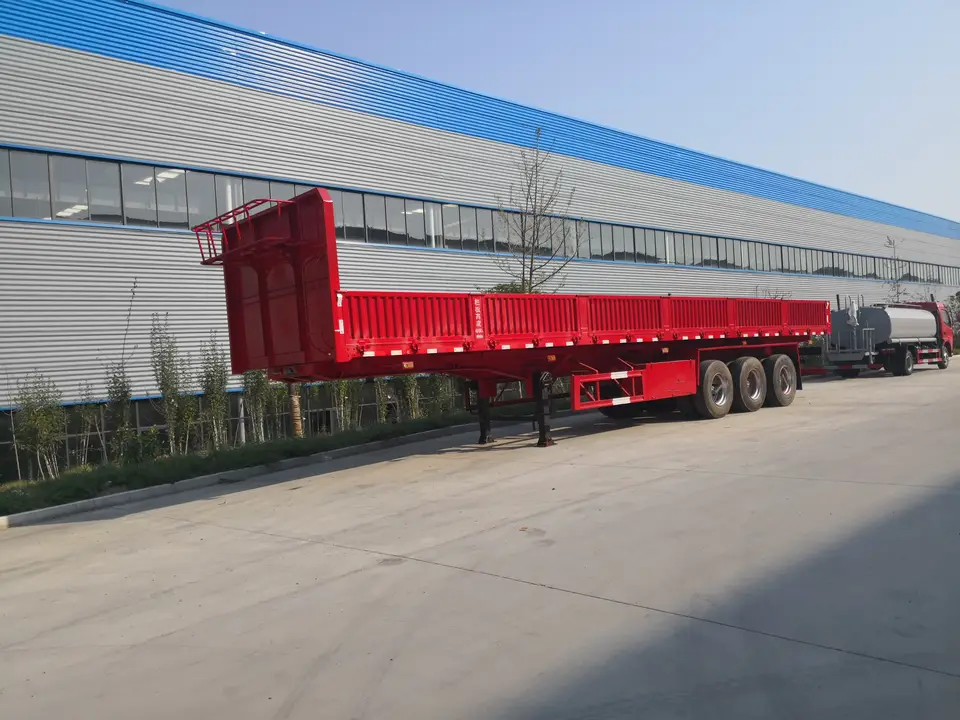

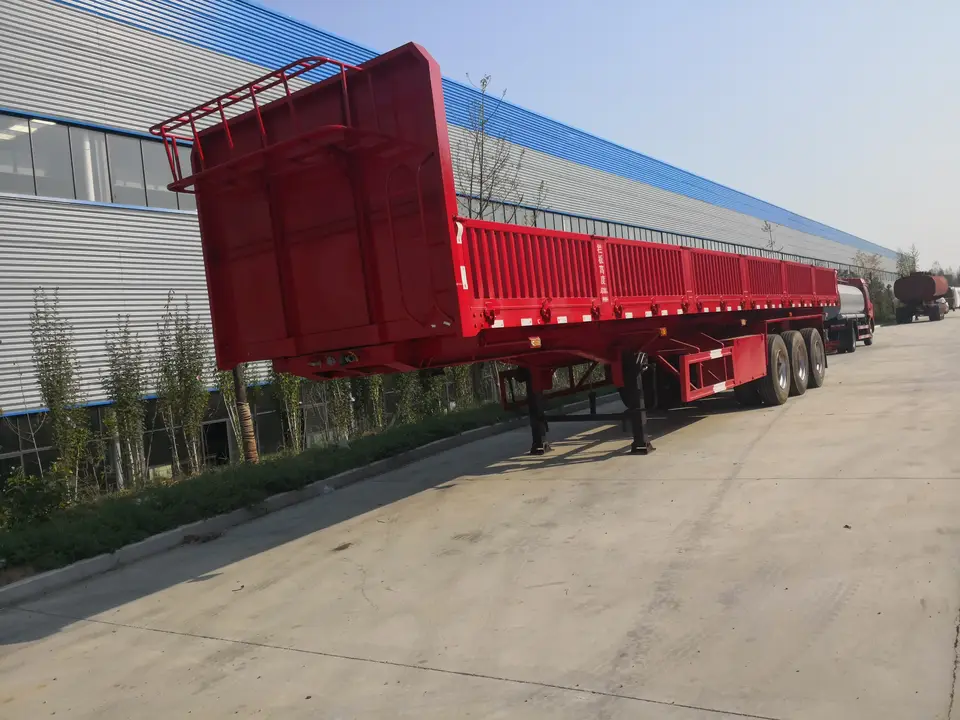

3 Axles 40 Foot Container Tray Cargo Semi Trailer with Side Cover
$7,500.00
17
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
5-Years Warranty
Container warranty
Our High Quality 3 Axles 40 Foot Container Tray Cargo Semi Trailer with Side Cover is built to the highest standards, offering durability and safety for your cargo transport needs.
- Constructed with premium materials and reinforced components, this semi-trailer is engineered to withstand heavy loads and demanding road conditions, ensuring long-lasting performance.
- The side cover is made from high-quality materials that provide excellent weather resistance and secure containment of cargo during transit.
- Equipped with advanced braking systems and suspension, this trailer offers safe and controlled handling, providing peace of mind during your cargo transport operations.
| pecification | Overall dimensions | 12600*2500*2600mm | Internal dimensions | |
| Height of traction pin | 1300mm | Front/rear suspension | ||
| wheelbase | 1310mm | Track width | 1840mm | |
| Frame body configuration | Item | texture of material | Specifications | |
| Girder | Q345 | Height 500mm, width 140mm, upper wing plate 14mm, lower wing plate 16mm, vertical plate 8mm; | ||
| beam | Q345 channel steel | 100mm channel steel | ||
| Side beam | Q345 channel steel | 16 # channel steel | ||
| floor | Q235 manganese plate | 3mm tread plate | ||
| Container lock | 12 Lock | |||
| parts | suspension | 3-axle mechanical suspension | Leaf spring | 90 * 13 * 10-6 frames |
| Axle specification/brand | 13T/1840 Fuhua | Number of axles | 3 | |
| Tyre specification/brand | 12R22.5 | Number of tires | 12 | |
| Steel ring specification/brand | 9.0-22.5 | Number of steel rims | 12 | |
| Outrigger specification/brand | 28T/Yahua | Traction pin specification | 50 # or 90 # interchangeable type | |
| Brake system | Brake valve brand | WABCO | Specification/quantity of brake chamber | T30/30-6 |
| Brake system | Emergency braking system, air braking, double air pipeline, 6 T30/30 brake chambers, 2 40L air reservoirs | |||
| Electrical circuit system | Circuit socket | 7-hole socket | Voltage | 24 |
| lamps and lanterns | LED light | Two rear tail lights (including two steering lights, two brake lights and two constant lights), eight side lights and two rear triangular reflectors; | ||
| enclosure | hold-all | 1 tool box | tool | Shaft end wrench, rocker |
| Spare wheel holder | 1 | |||
| colour | According to customer requirements | |||
Experience the pinnacle of container transport efficiency with our High Quality 3 Axles 40 Foot Container Tray Cargo Semi Trailer with Side Cover. This versatile semi-trailer is specifically designed to transport standard 40-foot containers while offering the added benefit of a side cover for secure and weather-resistant cargo containment.
- The container tray design allows for easy loading and unloading of standard 40-foot containers, streamlining your logistics operations and reducing turnaround times.
- Equipped with a side cover, this semi-trailer provides enhanced cargo security and protection against the elements, making it suitable for a wide range of cargo types.
- Whether you’re moving goods between ports, warehouses, or distribution centers, our container tray cargo semi trailer ensures smooth and reliable container transportation.
Shipping Container Delivery Guidelines
- 20 Foot shipping containers require a minimum of 80 feet of space to back into in order to slide off onto the ground in the desired area. A minimum of a 12’ width is needed for maneuvering.
- 40 Foot shipping containers require a minimum of 110 feet of space to back into in order to slide off onto the ground in the desired area. A minimum of 12’ width is needed for maneuvering.
- The delivering area must be hardtop such as pavement, asphalt, compacted soil, gravel and any other strong surface able to support a tractor trailer or flat bed to drive upon. The area must not be soft, sharp, have pot holes, overgrown brush or be hazardous to access.
- If delivering on grass or dirt, it’s important to keep an eye on the weather and avoid wet days and reschedule accordingly.
- Trucks are not able to jump curbs, back into steep inclines or maneuver around tight hills. Safety is the upmost importance during delivery. Drivers will not risk tight spaces to avoid damaging their trailers or private property. Trucks are unable to drive over leach fields, unsupportive bridges, restricted weight access roads and other obstacle based areas as an example.
- It is very common to place railroad ties, 2”x 4” s / 4”x 4” s or gravel pads / crushed stone at the drop area. Bricks and cinder blocks are not recommended.
- All power lines must be at least 14’ high from the ground for delivery.
- In the event a truck gets stuck in a soft area on the property, it is the responsibility of the property owner to resolve at their own expense for the truck to be pulled out by a local recovery service – please make sure the area is suitable for delivery and there are no obstructions.
- In the event a truck shows up for delivery and the area is blocked by vehicles, construction equipment, locked gates or has inadequate space for delivery, the cost for the full delivery and return is at the responsibility of the purchaser. Trucks waiting for an area to be made accessible may charge an hourly rate 30 – 60 mins after arrival.
